Tacho Pro 9 Pin Serial Wiring

[chrismoore02]

can anyone here help me by providing the wiring pinouts for a tachopro 2008 9pin serial port, as all the clones dont have this wired up and i would like to wire mine up so i can save dumps onto my pc.

Many Thanks in advance

Chris

[chrismoore02]

someone on here must have the pinouts

[dave11674]

my clone has its serial port wired up mate

dave

[chrismoore02]

could you post a picture of the wiring for the serial port so i can wire mine up please if its not too much trouble

chris

[Alex_G]

Hello,

if i remember correctly, you can use any null-modem cable.

null-modem cable (pinout: DB9 5-5 2-3 3-2)

Regards,
Alex_G

[chrismoore02]

cheers alex but i have the null-modem cable but the connector is not wired to the board inside the unit, this is what i need the details of

[Alex_G]

so you actualy need connection inside Tacho Universal unit?
From connector to TU PCB ?

Regards,
Alex_G

[chrismoore02]

yes alex thats what i need

[dave11674]

But old like but may come in handy

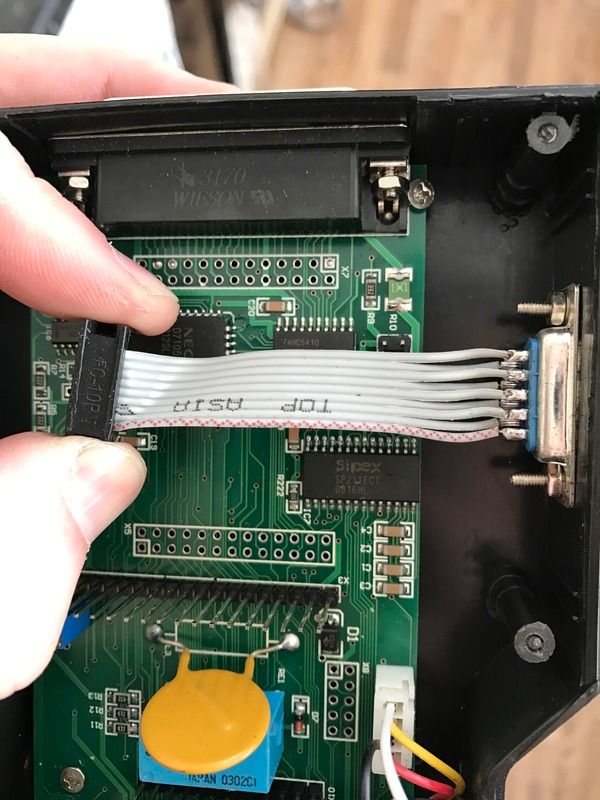

http://i27.photobucket.com/albums/c1...psvpr79sg1.jpg

dave

[dave11674]

So looking at the board holes
bottom right is a square
so from square going up
square pin 1 of db9
going up to 2-3-4-5
opposite square going up is
6-7-8-9 top being empty

hope you can follow this
old news but just needed it myself for an old KA dash
